| Wingspan |
1800mm (70.87in) |
| Length |
2000mm (78.74in) |
| Flying Weight |
25-27lbs wet. 18lbs without batteries, engine or fuel |
| Recommended engine thrust |
10～12 kg / 20～26.4 (Lb) |
| Cruising speed |
260 km/h |
| Flying time |
6～8 mins |
| Wing area |
67.94 dm2 |
| Wing load |
174.57 g/dm2 |
| Main material |
FRP |
| Painting surface |
Highlight environmental protection paint + decal |
| Suitable experience level |
□Zero basis □Beginner □Intermediate ■Advanced |
| PNP Assembly difficulty |
□☆10mins ■★☆30mins □★★60mins |
| Suitable for ambient temperature |
0℃～40℃ |
| Radio System |
8 channel (required & not included) |
| Control System |
MFC-2085 |
| Recommended Receiver Battery |
2S / 7.4V / 5200 mAh Li-Po XT60 Plug×2 PCS(required & not included) |
| Recommended Power Battery |
According to engine matching (required & not included) |
| Servos(included in PNP only) |
25g×3 Metal gear with 90mm lead (Left & right ailerons & rudder,forward)
25g×2 Metal gear with 90mm lead (Flap,forward)
25g×2 Metal gear with 90mm lead (Elevator,forward)
12g×1 Metal gear with 500mm lead (Nose wheel steering,forward)
12g×1 Metal gear with 500mm lead (Front landing gear cover plate,forward)
|
| Servo material |
7.4V high-voltage high-speed metal gear, aluminum middle shell digital |
| Ailerons |
Yes |
| Flaps |
Yes |
| Elevator(Horizontal tail) |
Yes |
| Rudder(Vertical tail) |
Yes |
| Smoking system |
Yes |

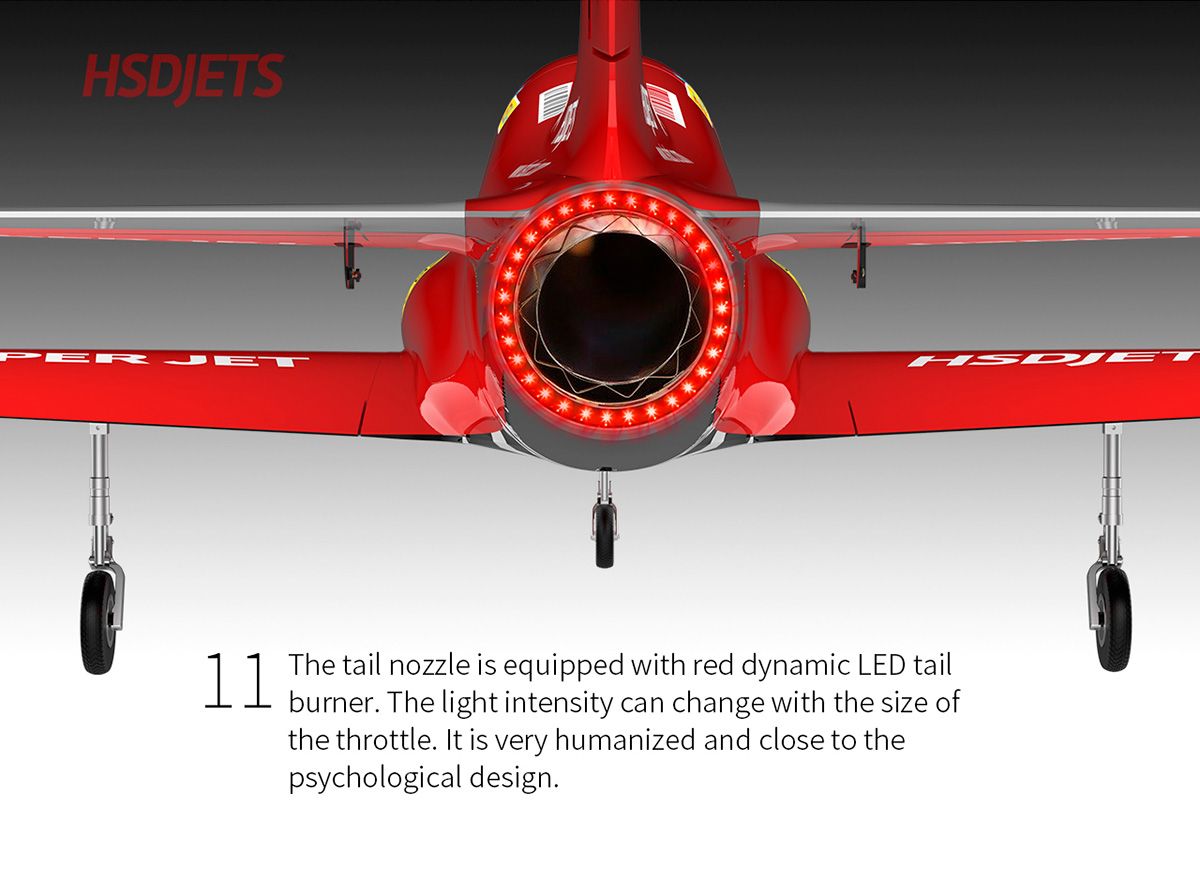

| LED lights system |
Yes |
| Electromagnetic brake system |
Yes |
| Reinforced gyro |
not included |
| Packaging / Size |
Outer box (extra hard carton) + Inner box(extra hard carton) + Card strip/1400×485×720 (mm) |
| CG (Center of Gravity) |
180～185 mm leading edge of main wing |
| Landing Gears |
Metal electric retractable hydraulic landing gear×3 |
| Battery Charger |
LiPo battery charger (required & not included) |
