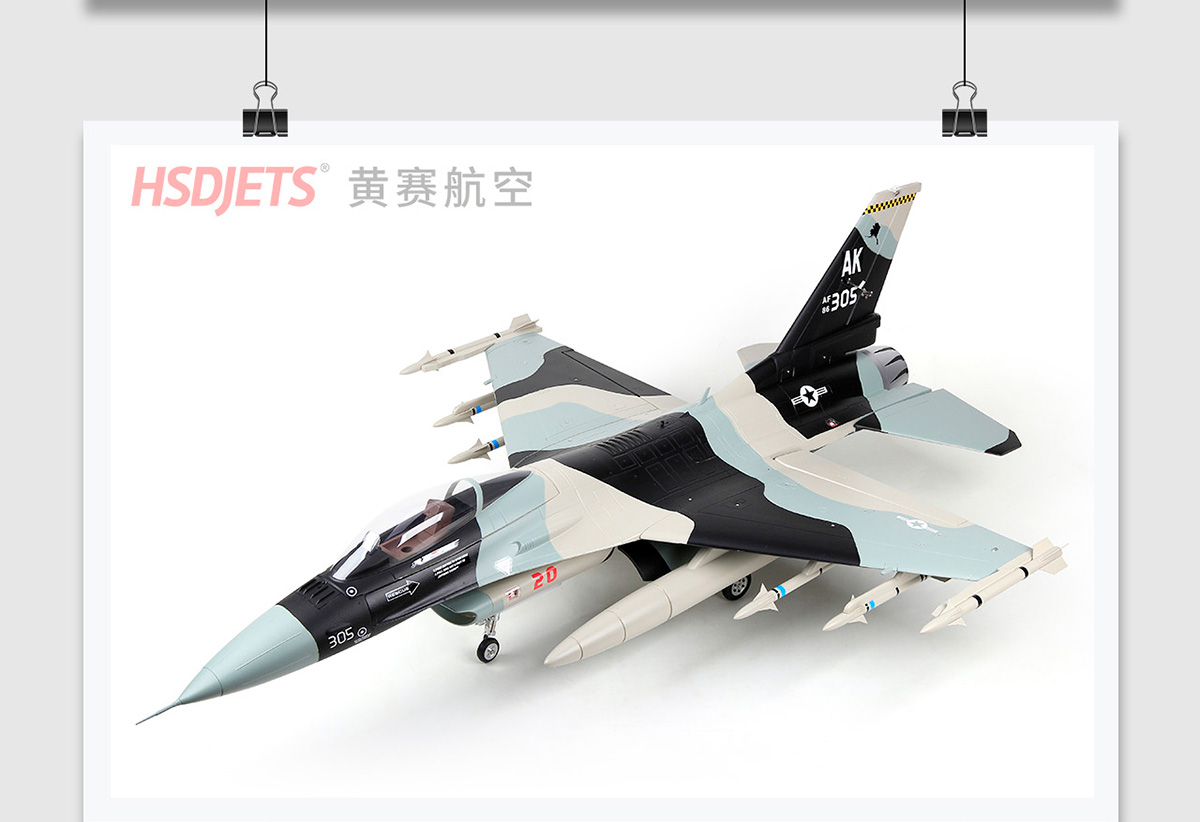

HSDJETS HF-16 Foam Turbine Black Camo Colors PNP V2.0

HSDJETS HF-16 Foam Turbine Black Camo Colors PNP V2.0 Not recommended for grass surfaces

Manufacturer: HSDJETS
Availability: Out of stock
SKU: A16 02 02 00X
$1,649.90
$1,529.90

SPECIFICATIONS:

Wingspan 1344mm (52.9in)
Length 1809mm (71.2in)
Flying Weight 8.5kg (18.7 lb)(with 1800cc Aviation kerosene)

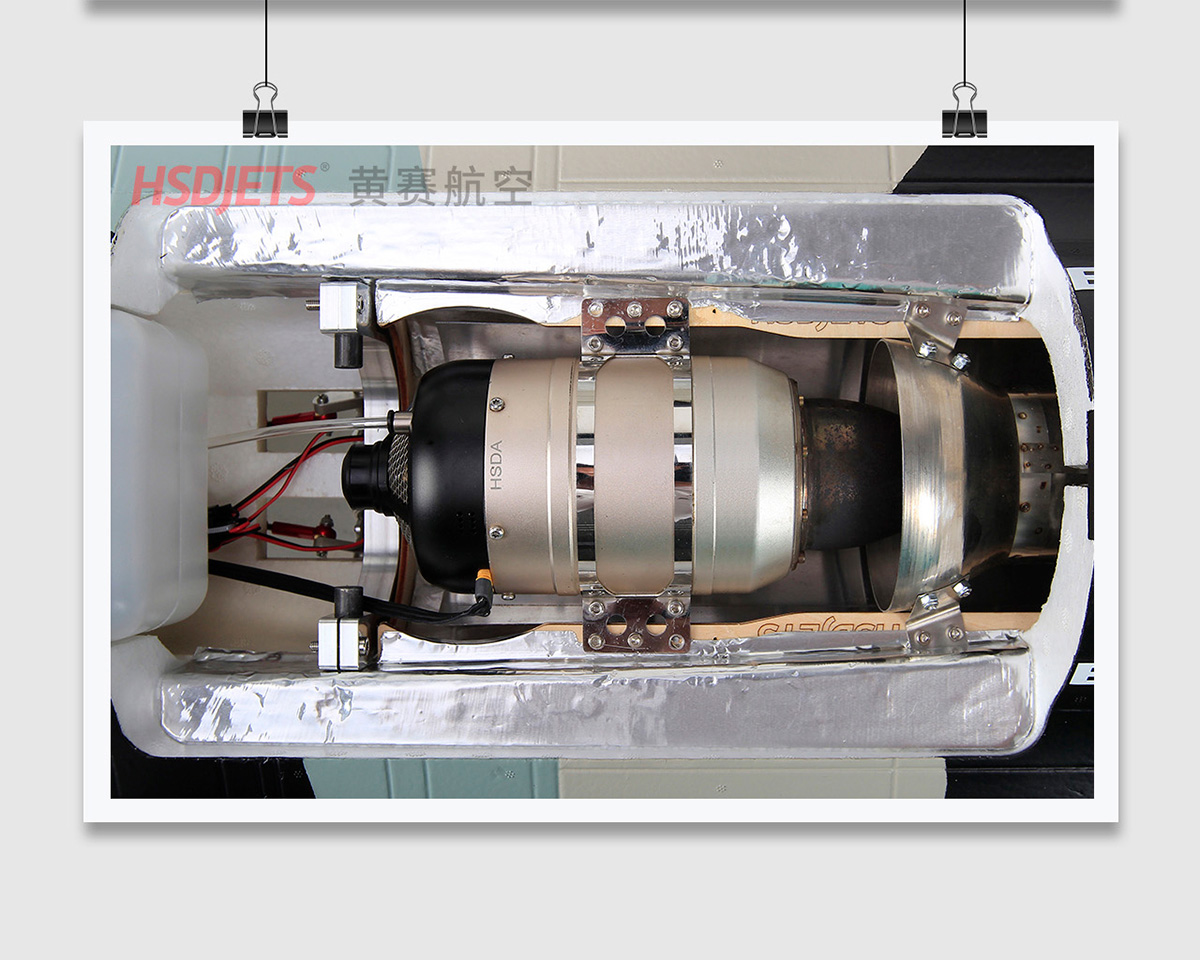

Turbine Engine 6~8KG Turbine (required & not included)
Cruising speed 150~200 km/h
Flying time 6.5 min (avg)
Wing area 47.6 dm2
Wing load 178.6 g/dm2
Main material 20 times the import of aeromodelling EPO

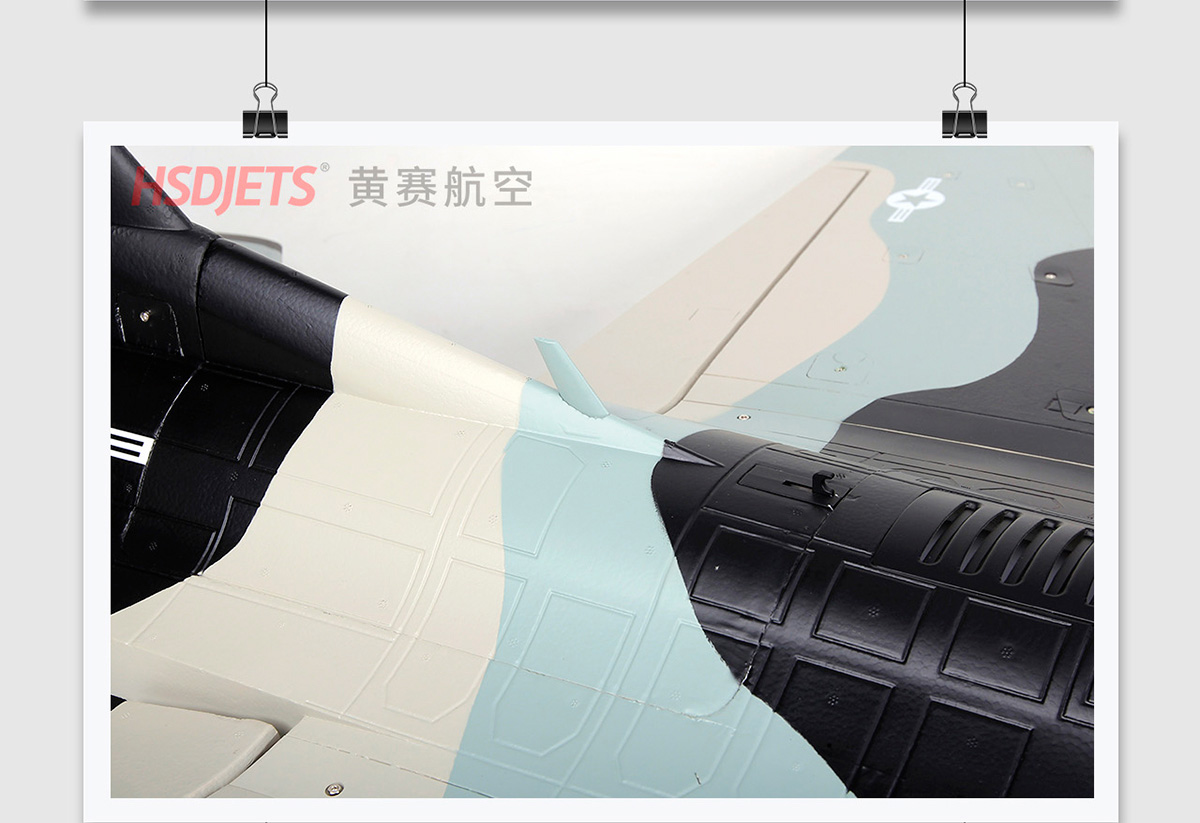

Painting surface Matte environmental water-borne paint + decal
Suitable experience level Advanced
PNP Assembly difficulty □☆10mins ■★☆30mins □★★60mins
Suitable for ambient temperature 0℃~40℃
Radio System 6 channel Minimum (required & not included)

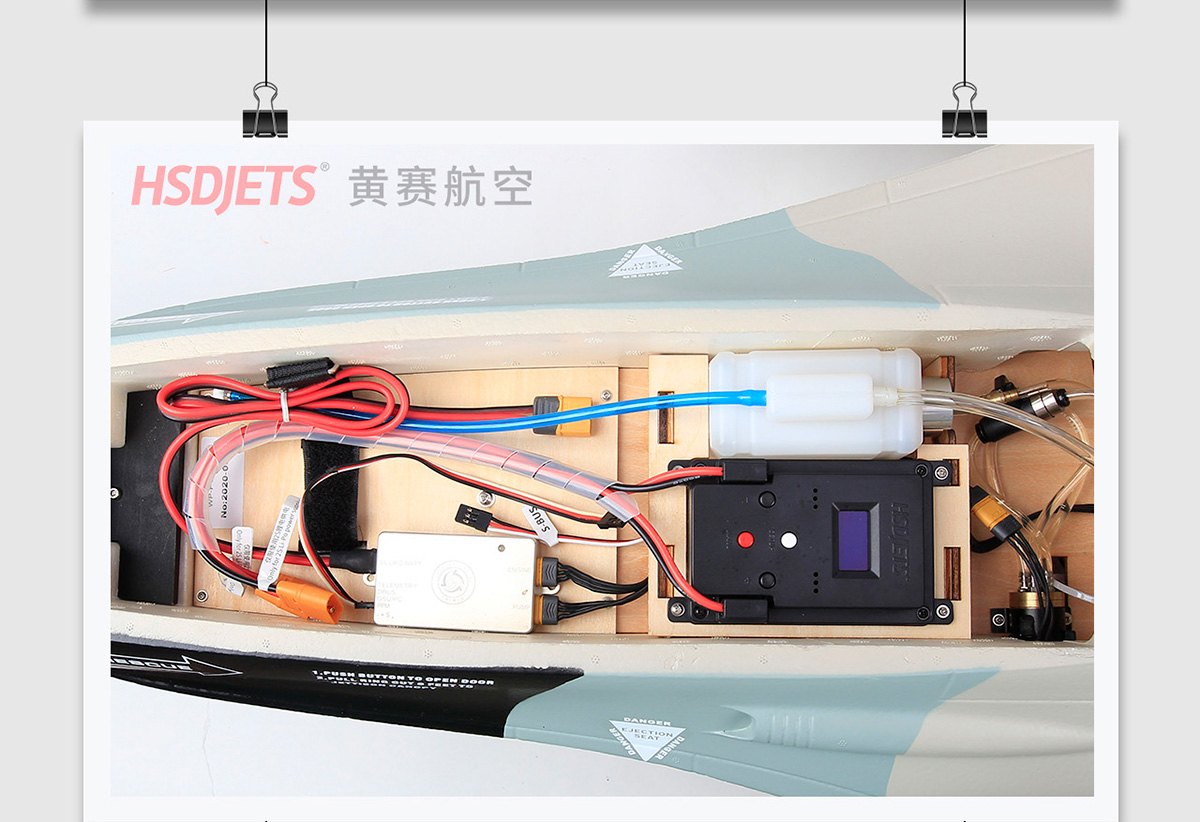

Control System MFC-2085
Servos(All 7.4V High voltage)

40g×2 Metal gear with 60mm lead (left & right Horizontal tail forward)
25g×2 Metal gear with 150mm lead (left & right Aileron forward)
25g×1 Metal gear with 230mm lead (Rudder forward)
12g×2 Metal gear with 480mm lead (with protection function)(Left & right rear cover plate forward)
12g×1 Metal gear with 480mm lead (with protection function)(Front cover plate forward)
12g×1 Metal gear with 320mm lead (with protection function)(Front wheel steering forward)
12g×1 Metal gear with 480mm lead (Front wheel 360 locking forward)
12g×1 Metal gear with 480mm lead (Rear wheel 360 locking reverse)
12g×1 Metal gear with 480mm lead (Rear wheel 360 locking forward)

Recommended Battery 2S,7.4V,3300~5200mAh×2,LiPo with XT60 type plug(required & not included)
Ailerons Yes
Flaps No
Elevator(Horizontal tail) Yes
Rudder(Vertical tail) Yes
The smoke system No

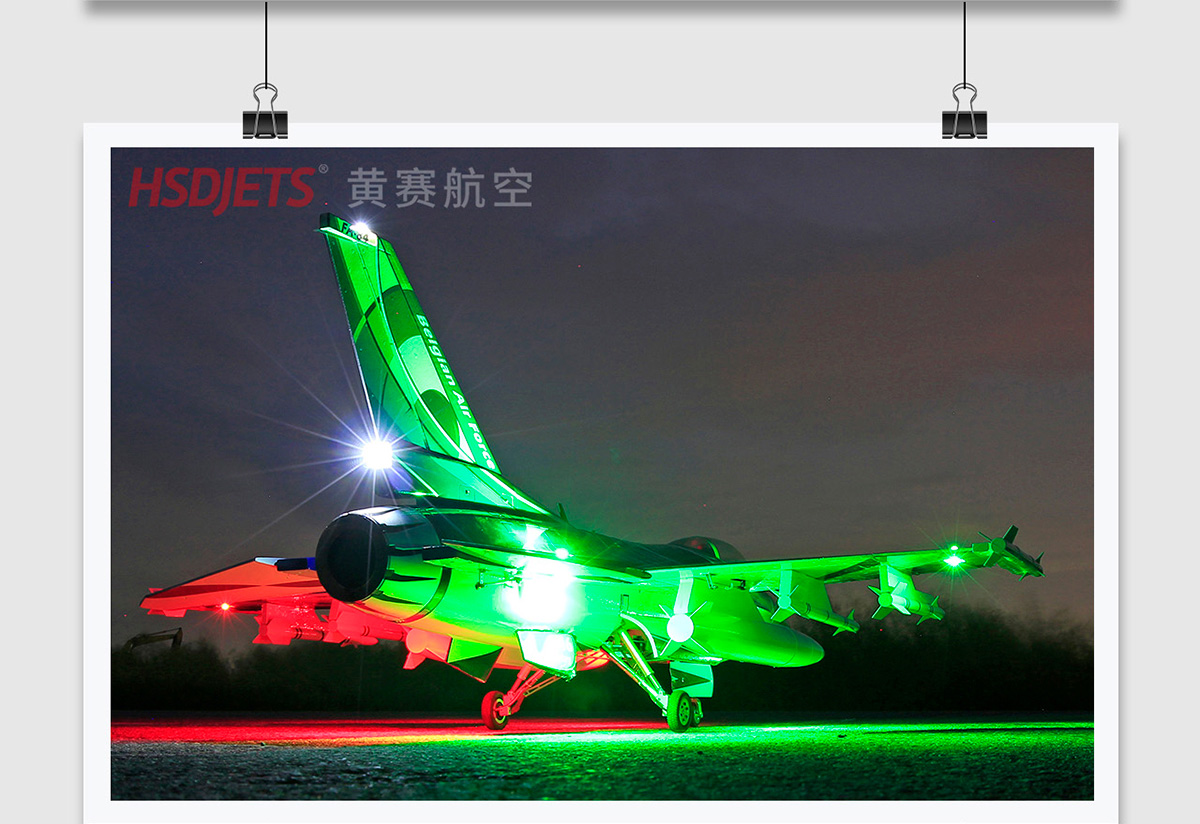

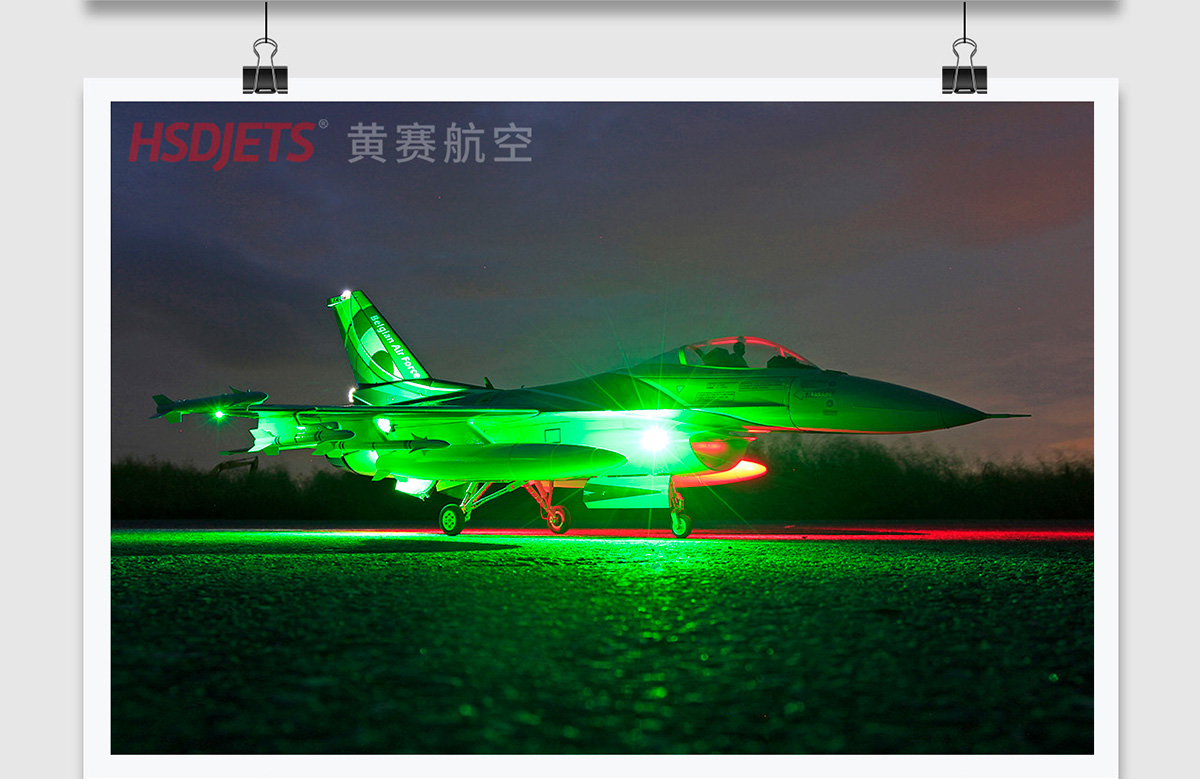

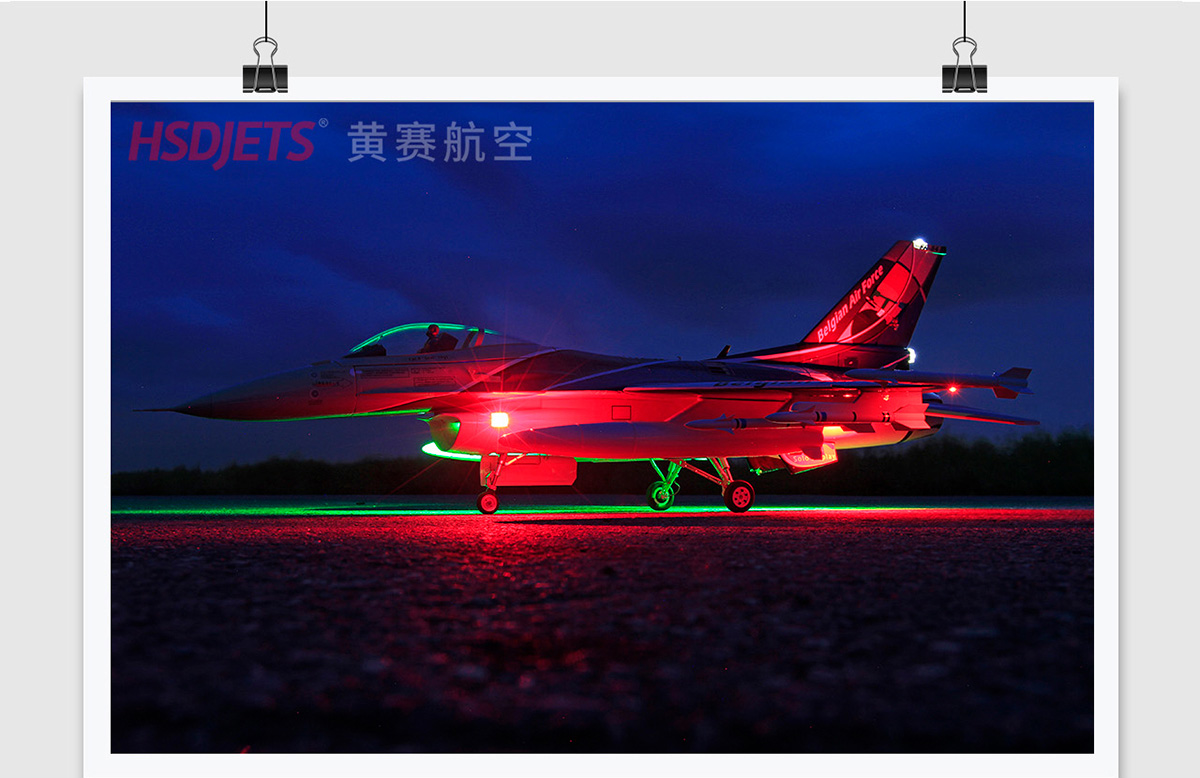

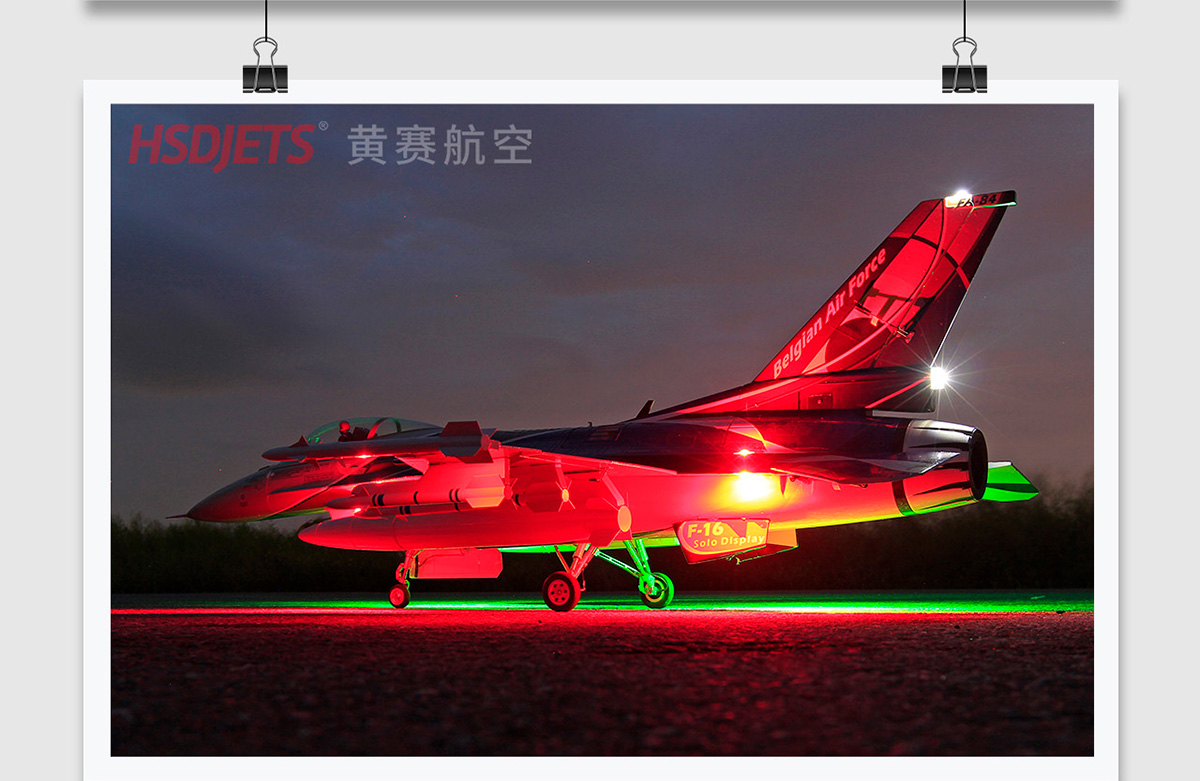

LED lights system Yes
Electromagnetic brake system Yes
Reinforced gyro not included
Packaging / Size Packing Box + Outer Box(Card mark)/1456×518×337(mm)
CG (Center of Gravity) 155160mm from the leading edge of the Main Wing

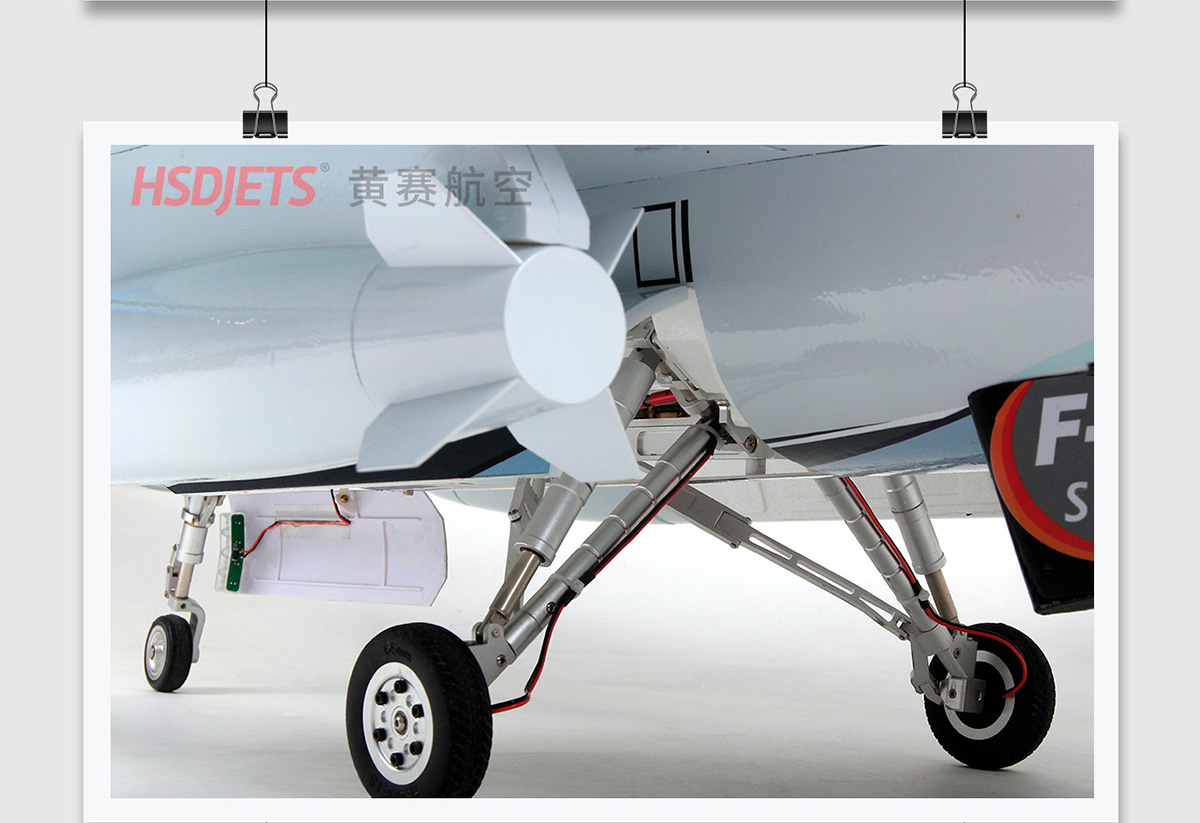

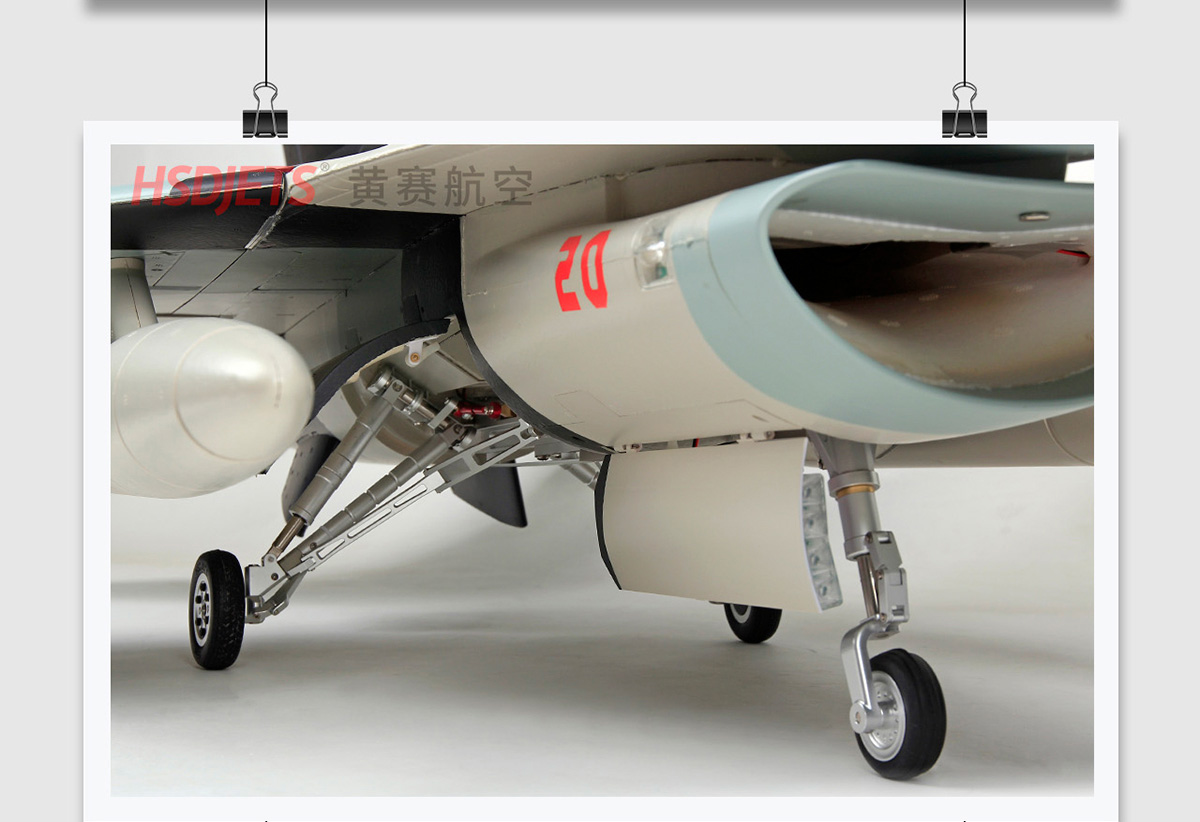

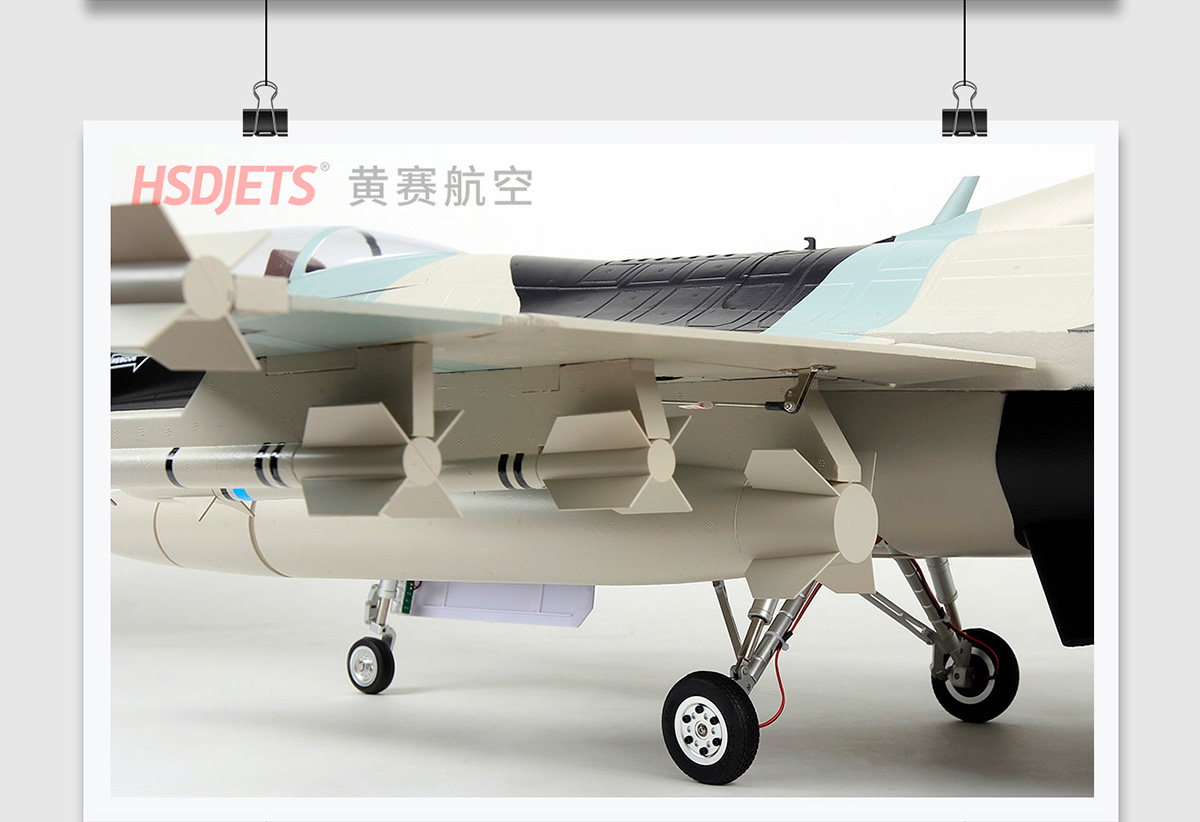

Landing Gears All-metal simulation electronic retractable landing gear×3
Battery Charger LiPo battery charger (required & not included)



PACKAGE INCLUDES:

  • Fuselage×1
  • Left Wing×1
  • Right Wing×1
  • Nose×1
  • Cockpit canopy×1
  • Vertical Stabilizer×1
  • Left Horizontal tail ×1
  • Right Horizontal tail ×1
  • L/R Auxiliary tank ×1

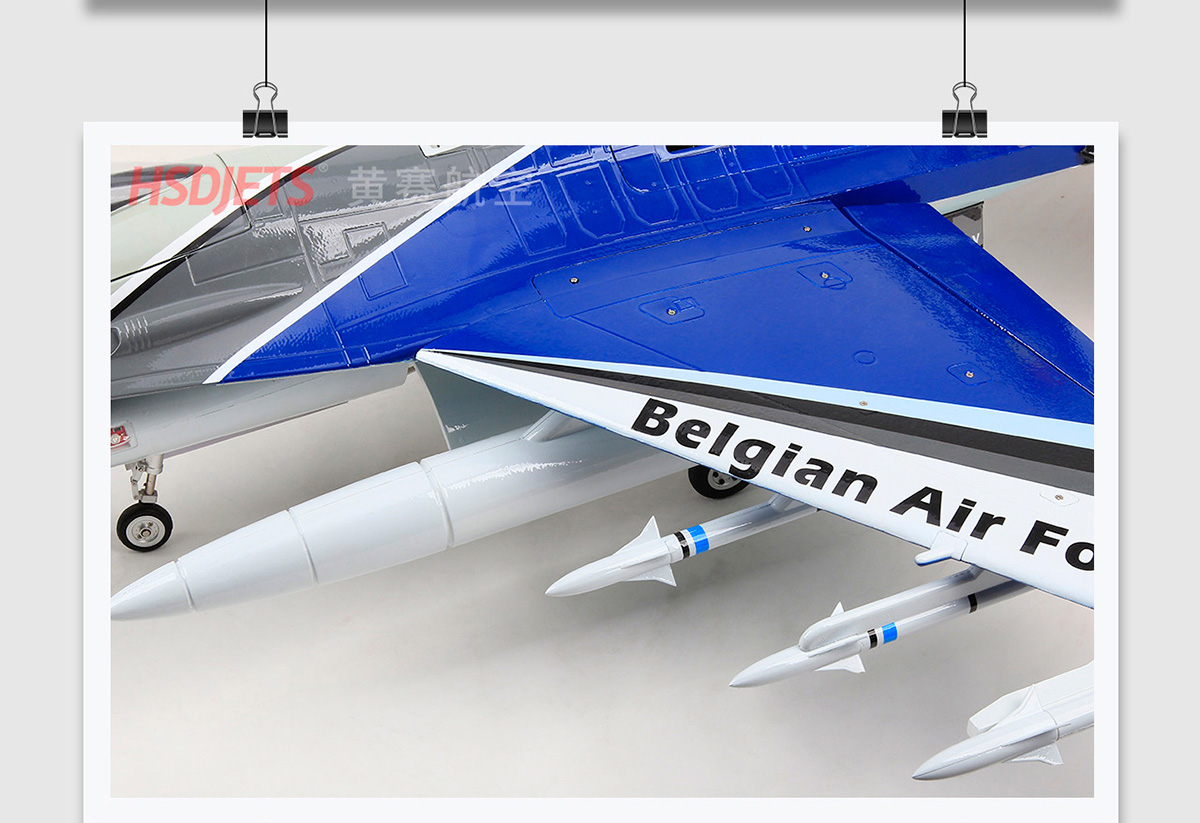

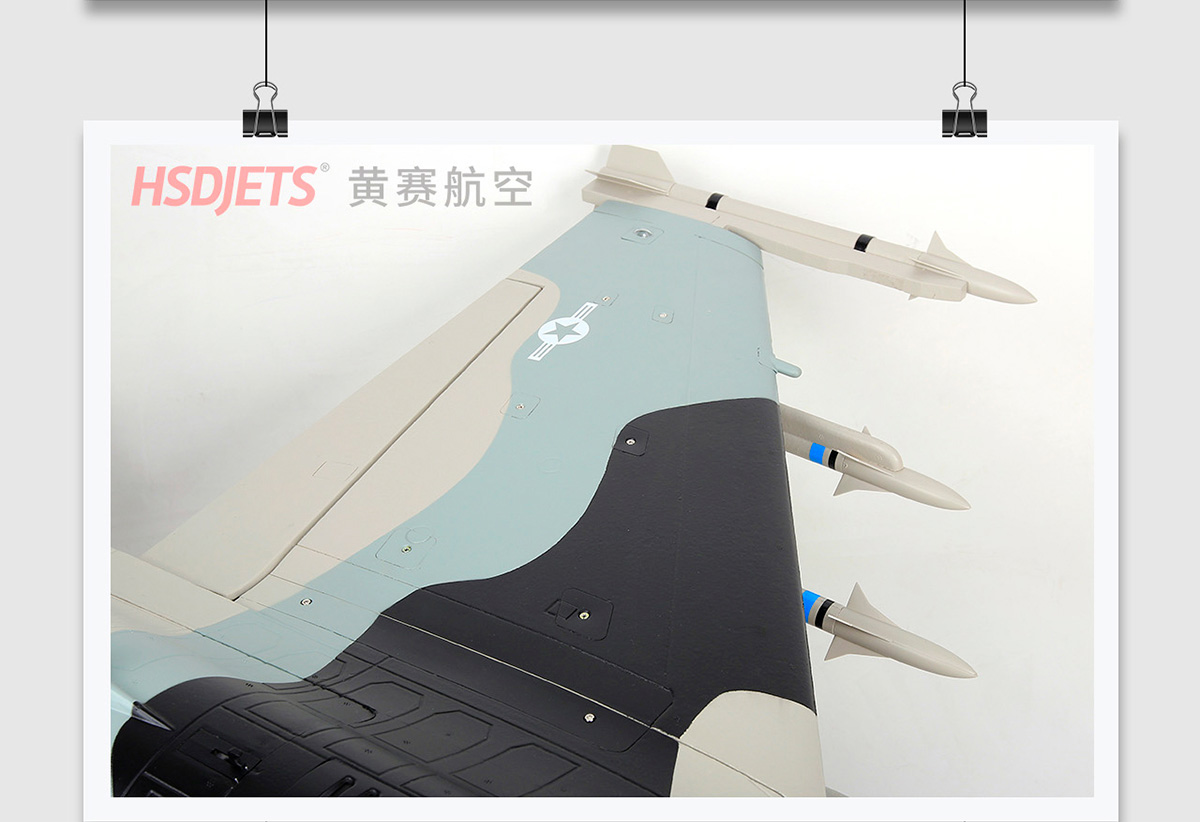

  • L/R wingtip missile ×1
  • L/R wingtip missile pylon ×1
  • L/R No.1 missile ×1
  • L/R No.2 missile ×1
  • L/R tail fins ×1
  • Main wing carbon tube L=400mm external diameter 10mm×2
  • Accessories Bag ×1
    • Fuselage antenna ×1

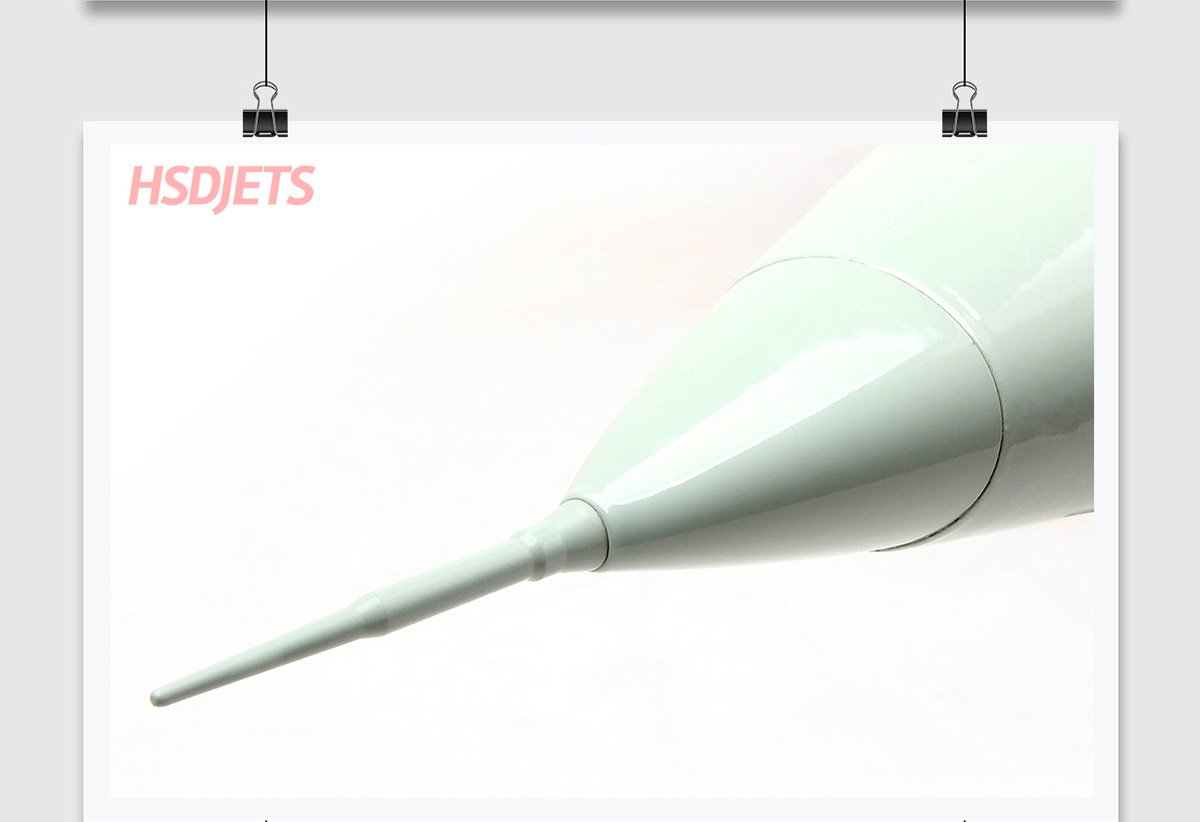

    • Pitot×1
    • Screw (HA3×14mm)×10 (Nose & Engine)
    • Screw (HM3×6mm)×2 (Horizontal tail)
    • Screw (HA3×10mm)×8 (Tail nozzle & Vertical)
    • Screw (KA3×16mm)×8 (Missile)
    • Screw (KA3×20mm)×8 (Missile)
    • Screw (KM3×60mm)×8 (Auxiliary tank)
    • Screw (HM3×10mm)×8 (Main wing)
  • HF-16 V2 Manual×1
  • MFC-2085 Manual×1

REQUIRES:
  • 6~8KG Turbine (required & not included)
  • 6 channel radio system(radio & receiver) (required & not included)
  • 2S, 7.4V, 3300~5200mAh ×2, LiPo with XT60 plug (required & not included)
  • LiPo battery charger (required & not included)

Write your own review
  • Only registered users can write reviews
  • Product can be reviewed only after purchasing it
*
*
  • Bad
  • Excellent

Q: What does KIT mean?
A: It means aircraft comes without any electronic equipment, wiring, plumbing, electronics, or exhaust pipe. The typical wood, plastic, heat shields (where applicable), and applicable hardware is usually included.

Q: What does KIT+L mean?
A: It means a KIT version but comes with landing gear installed.

Q: What does PNP mean?
A: It means the aircraft has equipment already installed and tested, but customers need to purchase remote control, receiver, batteries and the charger they prefer. For example: servos, power distribution system, landing gear, control system for utilities (gear. lights, brakes, and accessories), lights & cables (according to the features of the model aircraft). It's a 90% completed model. *Note: turbine and turbine accessories are not included.

Q: What does PNP+T mean?
A: It means a PNP version, which includes the turbine engine installed and tested. It's a 95% installation.

Q: What does RTF mean?
A: It means the aircraft comes with all equipment necessary and installed. Some of the equipment has option or is optional. This equipment is typically selected and paid for by the customer (some of these selections will include battery supply, remote control, receiver, and gyro). It's a 100% installation.
