HSDJETS HF-86 Foam Turbine Yellow Ribbon Colors KIT*

HSDJETS HF-86 Foam Turbine Yellow Ribbon Colors KIT
Manufacturer: HSDJETS
Availability: In stock
SKU: A53 02 03 00
$799.90

SPECIFICATIONS:

Wingspan 1720 mm (67.7 in)
Length 1715 mm (67.5 in)
Weight ---
Turbine Engine 8KG~12KG (required & not included)
Cruising speed ---
Flying time ---
Wing area 64.34 dm2
Wing load ---
Main material 20 times EPO
Painting surface Matte environmental water-borne paint + decal
Suitable experience level □Zero basis □Beginner ■Intermediate □Advanced
KIT Assembly difficulty □☆10mins □★☆30mins ■★★60mins (For reference only)
Suitable for ambient temperature 0℃~40℃
Radio System 8 channel (required & not included)
Control System MFC-2085 (required & not included)
Servos(required & not included)

7.4V 25g×2 Metal gear with 560mm lead (Left & right ailerons forward)
7.4V 25g×2 Metal gear with 410mm lead (Flap×2 forward)
7.4V 25g×3 Metal gear with 190mm lead (Elevator×2 & rudder×1 forward)
7.4V 25g×1 Metal gear with 230mm lead with protection function (Front wheel cover plate forward)
7.4V 12g×3 Metal gear with 380mm lead with protection function (Front wheel steering / Rear wheel cover plate forward)
7.4V 12g×2 Metal gear with 80mm lead with protection function (Speed brake forward)

Recommended Battery 2S,7.4V,2200~5200mAh×2,LiPo with XT60 type plug(required & not included)
Ailerons Yes
Flaps Yes
Elevator(Horizontal tail) Yes
Rudder(Vertical tail) Yes
The smoke system No
LED lights system Selective configuration (not included)
Electromagnetic brake system Selective configuration (not included)
Reinforced gyro Selective configuration (not included)
Packaging / Size Packing Box + Outer Box(Card mark)/52×21.7×17.3(inch)

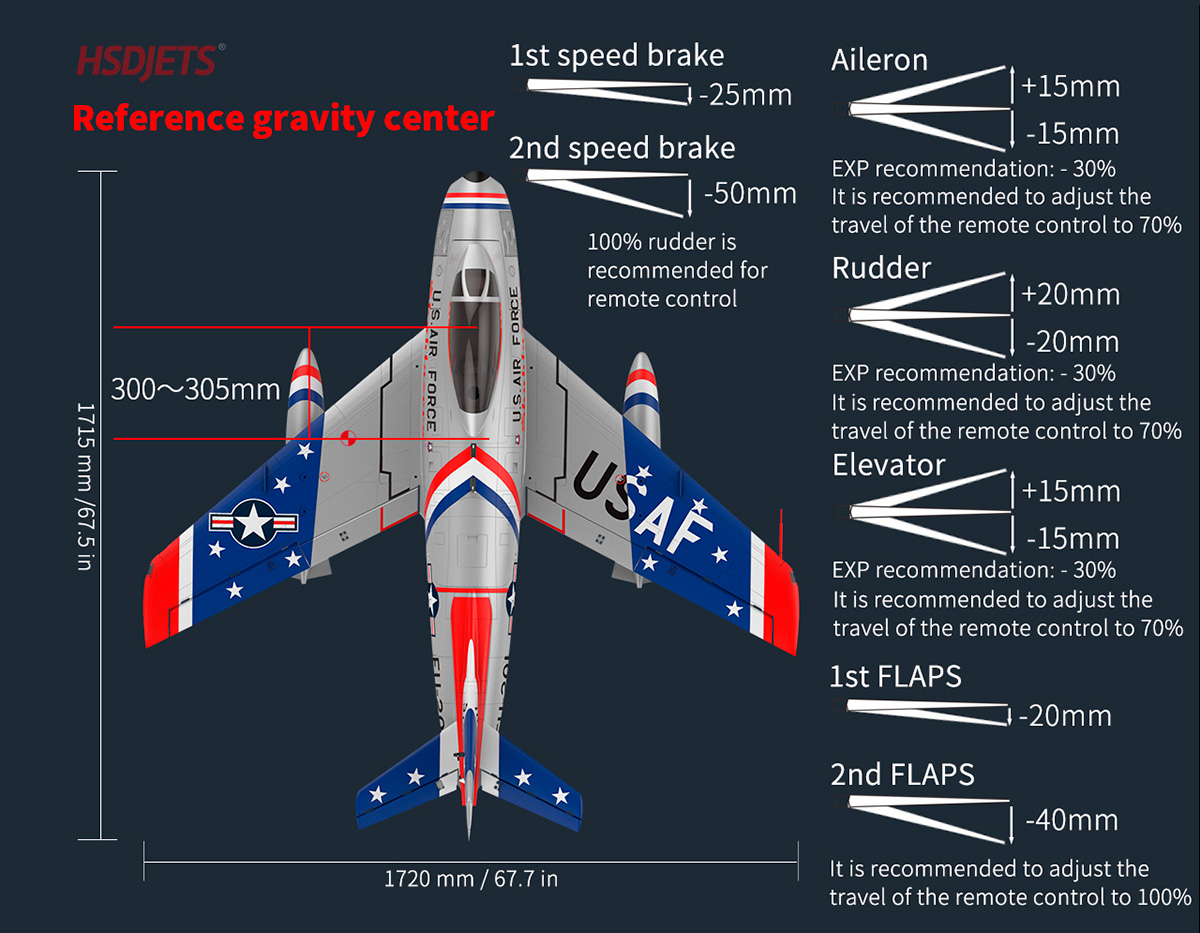

CG (Center of Gravity) 300305 mm from the leading edge of the Main Wing
Landing Gears Metal electric retractable hydraulic landing gear×3 (required & not included)
Battery Charger LiPo battery charger (required & not included)

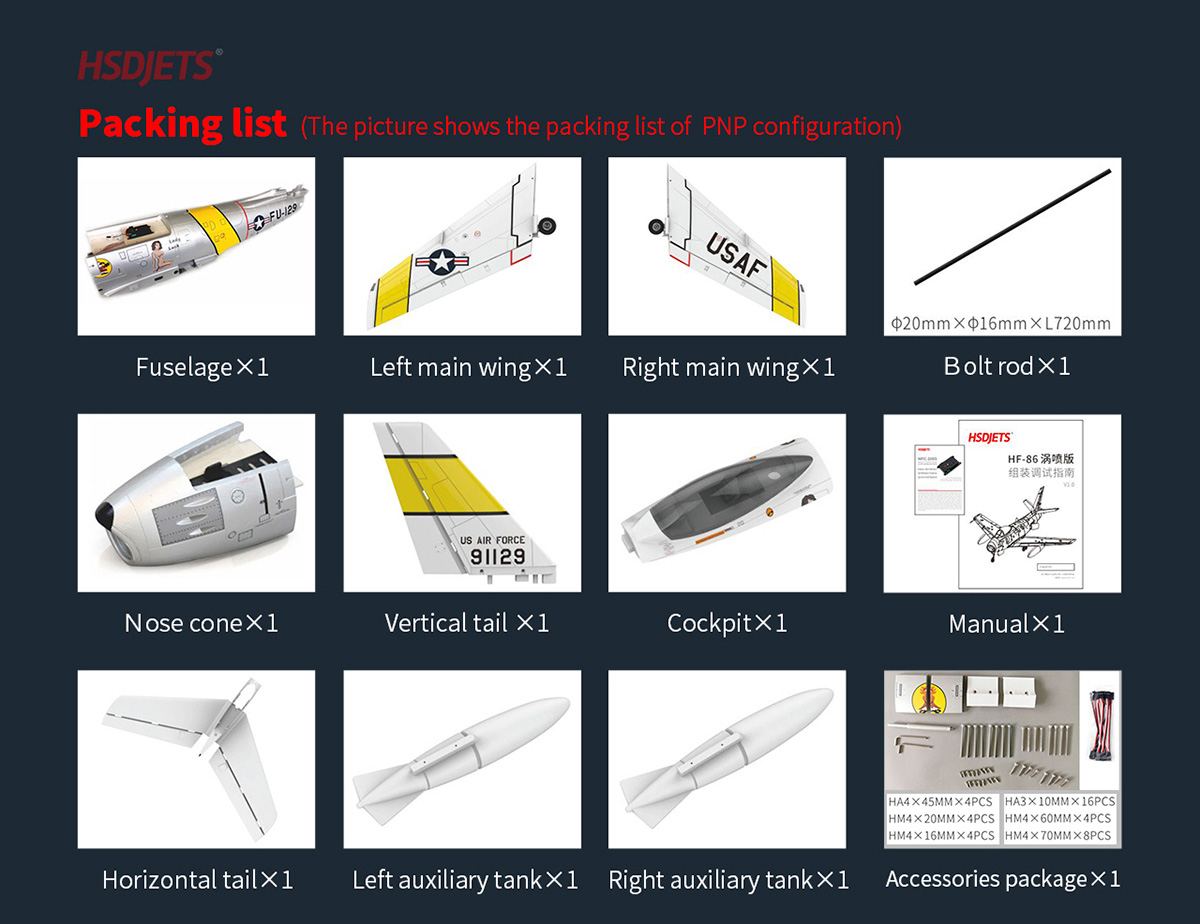

PACKAGE INCLUDES:

  • Fuselage×1 pcs
  • Left main wing×1 pcs
  • Right main wing×1 pcs
  • Nose×1 pcs
  • Cockpit×1 pcs
  • Vertical tail×1 pcs
  • Horizontal tail ×1 pcs
  • Left auxiliary tank×1 pcs
  • Right auxiliary tank×1 pcs
  • Main wing carbon tube L=598mm external diameter 16mm×1 pcs
  • Accessories Bag 1 ×1 pcs
    • Screw (HA4×45mm)×4 pcs (Horizontal tail)
    • Screw (HM4×20mm)×4 pcs (Wing)
    • Screw (HM4×16mm)×4 pcs (Wing)
    • Screw (HA3×10mm)×16 pcs (Vertical tail / Nose)
    • Screw (HA3×14mm)×8 pcs (Engine)
    • Screw (HM4×60mm)×4 pcs (Nose)
    • Screw (HM4×70mm)×8 pcs (Auxiliary tank)
  • Accessories Bag 2 ×1 pcs
    • 100mm signal line(JR male+JR male) ×8 pcs
  • Manual×1 pcs

REQUIRES:
  • 8KG~12KG turbine engine (required & not included)
  • 8 channel radio system(radio & receiver) (required & not included)
  • 2S,7.4V,2200~5200mAh×2,LiPo with XT60 type plug(required & not included)
  • LiPo battery charger (required & not included)
  • Servos
    7.4V 25g×2 Metal gear with 560mm lead (Left & right ailerons forward)
    7.4V 25g×2 Metal gear with 410mm lead (Flap×2 forward)
    7.4V 25g×3 Metal gear with 190mm lead (Elevator×2 & rudder×1 forward)
    7.4V 25g×1 Metal gear with 230mm lead with protection function (Front wheel cover plate forward)
    7.4V 12g×3 Metal gear with 380mm lead with protection function (Front wheel steering / Rear wheel cover plate forward)
    7.4V 12g×2 Metal gear with 80mm lead with protection function (Speed brake forward)
  • Metal electric retractable hydraulic landing gear×3 (required & not included)
